Key Features
- 2,200 lb. tensile strength rod
- 4" bendng radius
- Deluxe version includes an accessory kit
- 3/16" diameter, pultrusion processed, high strength fiberglass rod
- Frames allow for vertical or horizontal payout
- Frame size: 16"L x 8-1/8"W x 19-3/8"H
- #12 UNC male threaded rod end
- Frame mounted terminal box for transmitter hook up
- 20 gauge copper tracer wire imbedded in rod

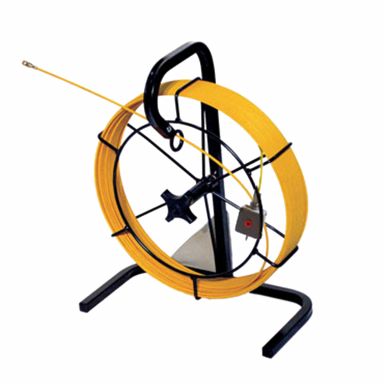

DCD 3/16" Detectable Reel Rod Fish Tape
A Roller Guide is recommended to create a better connection between the end of the rod and the wall of the ducting. This helps the signal to complete the circuit back to earth.
The Standard Reel Rods include a male rod end and a pulling eye. The Deluxe version includes following accessories: (2) Splice Connectors, (1) Flexible Guide Head, (1) Roller Guide, (1) Male Rod End, (1) Fiberglass Adhesive, (1) Rod Gripper, and (1) Accessory Pouch.
The core of the rod is manufactured by the pultrusion process. This involves impregnating high strength continuous glass fiber filaments with a liquefied resin. The fibers are drawn into a heated die where the resin matrix is cured, bonding the fibers together and allowing mechanical loads to be transmitted through the matrix and distributed amongst the fibers. The resulting pultruded rod combines both the high stiffness required to push the rod through long distances of ducting, with the flexibility to handle tight bends without damage. This inner core is then coated with a highly durable, scratch resistant polypropylene sheath which protects the core from mechanical damage.
A 20 gauge copper tracer wire imbedded in the rod allows a locate signal to be transmitted through the length rod.
