    Key Features

    • Location of non-metallic pipes
    • Useable for different pipe diameters
    • Independent of electrical interference
    • Variable hammer-frequencies for optimal results


    RSP3 Acoustic Pipe Knocker

    Now you can locate plastic water pipes without the risk of damaging the pipe, thanks to the RSP3 Acoustic Pipe Knocker!
    The thumper kit offers fast set-up, eliminates water connections or interruptions of service and comes with an easy to use control box. The control box features manual adjustments for impact intensity and pulse repetition. Three levels of impact intensity cover a broad range of locating or leak detection needs, use the low intensity setting closer to walls or high intensity for longer distances. The control box can be adjusted to deliver 40/min strike impulses for locating near the thumper, up to 120/min for longer distances. The RSP3 sends three impulses with each striker pulse sequence, and the sequence drops to two impulses with a low battery. The RSP3 impulse generator is designed to work on either vertical or horizontal pipes, while the variable impulse and intensity allows for optimal use on all types of pipes and water systems.
    This SEBA KMT water pipe knocker kit must be used with a listening device for locating water lines and leak detection. Pair with a HL 50-BT Acoustic Water Leak Locator or the HL7000 for surveying and pinpointing leaks.
    WCT Products is the Southern California Distributor for Megger products. Reach out for a quote or demonstration and we'll be in touch!
    PRODUCT
    PRICE
    RSP3 Acoustic Pipe Knocker (813360)
    RSP3 Acoustic Pipe Knocker
    RSP3 Acoustic Pipe Knocker (813360)

    Quote Only

    Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
    Total: $0.00


    Sign in or register to access Job Lists.

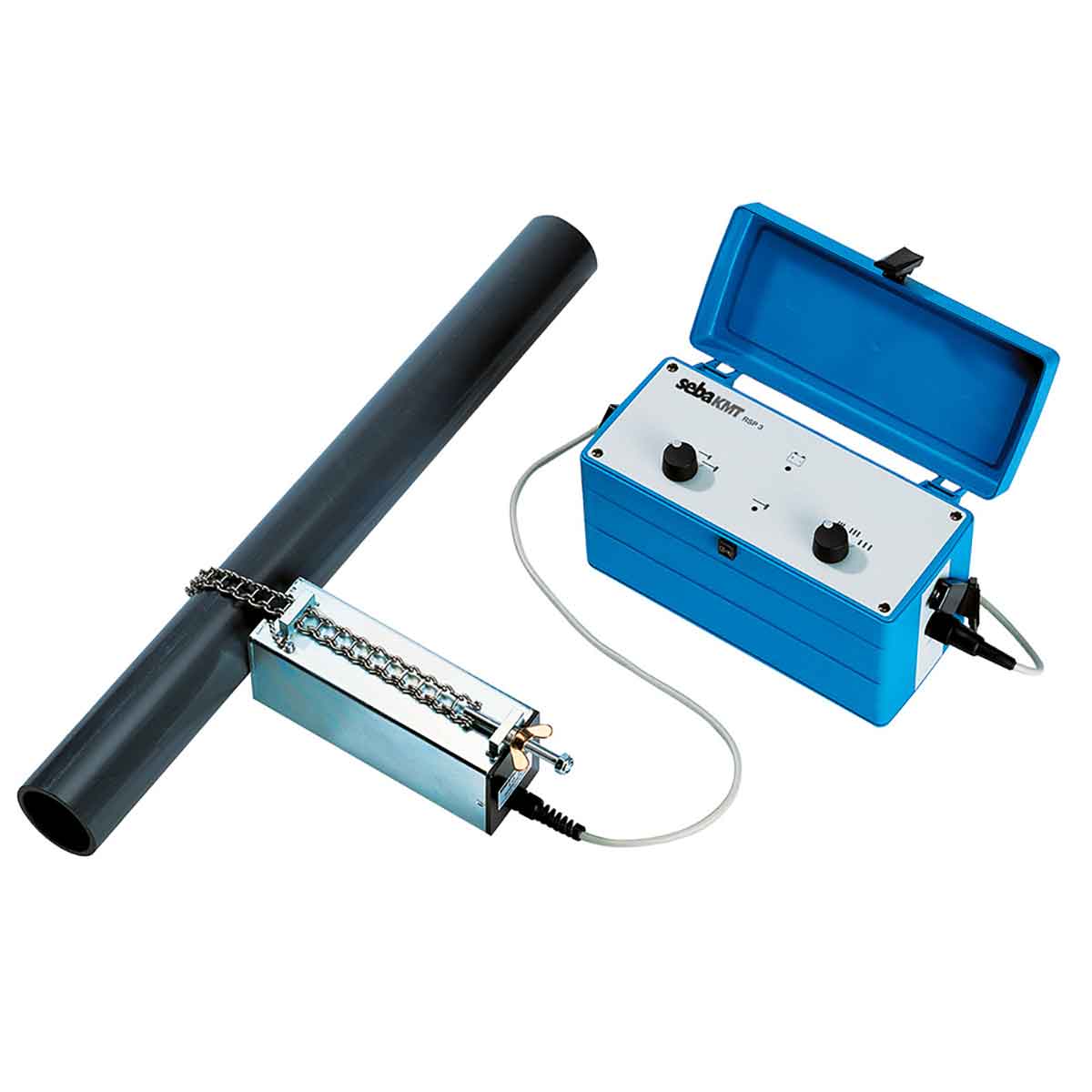

    The RSP-3 Acoustic Pipe Knocker comes in a hard Seba carry case and includes pulse generator, control box transmitter, and charging cable.
    In detection and localization of non-metallic drinking water pipes, e.g. asbestos cement, PE and PVC, the acoustic sound pulse technique is employed. A sound pulse generator transmits vibrations along the pipe. Depending on type of material, diameter and type of soil, the sound pulses propagate along the pipe and can be detected on the surface by means of a geophone. In this manner the route of the pipe can precisely be located. The achievable range depends on many factors such as depth, type of soil and pipe material.
    This acoustic location method can also be applied to metal pipes. It is extremely helpful for pipes with Tyton sleeves and in any event when, due to electrical interference, location by electric means is impossible. The range achieved with metal pipes is slightly greater than on others.
    Pulse rate: 3 pulses, 2 pulses for a weak battery Range 1: 40 / min Range 2: 60 / min Range 3: 80 / min Range 4: 120 / min Intensity 25 – 50 – 100 % Power-on: green LED signal Pulse: red LED signal Battery check: flashing green signal + pulse rate change Rechargeable battery: NiCd 12 V 2.8 Ah Operating cycle ≥ 16 h Charging cycle: 2 hours Operating temperature: - 10 ºC ... + 50 ºC Chain length: 580 mm Dimensions IG 3: 190 x 95 x 65 mm Weight IG 3: 2.6 kg Dimensions RSP-3: 250 x 115 x 160 mm Weight RSP-3: 2.1 kg
