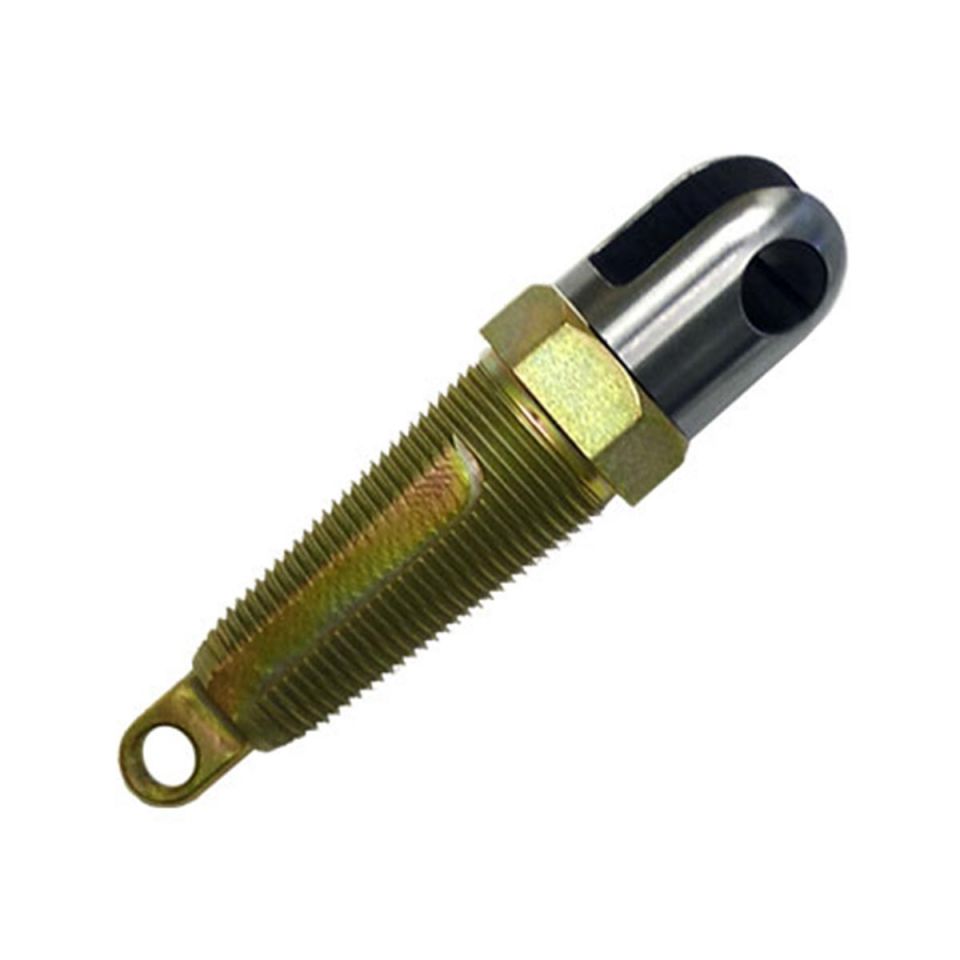

Swivel Clevis Innerduct Pulling Eye

Similar to the 00604 series lug pulling eye and 00605 series clevis pulling eye, the 00615 series swivel clevis pulling eye is perfect for installing polyethylene innerducts inside larger ducts.

With multiple size options, all constructed of steel and plated for corrosion resistance & durability, these 00615 swivel clevis pulling eyes are quick and easy to install without requiring any special tools.

These pulling eyes feature a swivel clevis head that is great for attaching directly to a pulling rope or wire, or Wire Pulling Grips, with an eye that can be slotted into the clevis and attached with the provided pin.

PRODUCT

PRICE

Innerduct Swivel Pulling Eye, 1" Duct, Clevis Style (00615-100)

Quote Only

Expanding Duct Puller 1-1/4" Duct (00620-125)

Quote Only

Expanding Duct Puller 1-1/2" Duct (00620-150)

Quote Only

Innerduct Swivel Pulling Eye,1-1/4" Duct, Clevis Style (00615-125)

Quote Only

Innerduct Swivel Pulling Eye,1-1/2" Duct, Clevis Style (00615-150)

Quote Only

Innerduct Swivel Pulling Eye, 2" Duct, Clevis Style (00615-200)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

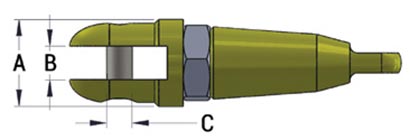

Part #	Nominal Duct Size	Min. Duct Inside Dia.	Max. Duct Inside Dia.	A	B	C	Weight
00615-100	1"	0.94"	1.15"	1-3/8"	17/32"	13/32"	0.99 lbs.
00615-125	1.25"	1.26"	1.44"	1-3/4"	17/32"	13/32"	1.57 lbs.
00615-150	1.5"	1.48"	1.66"	2"	11/16"	5/8"	2.23 lbs.
00615-200	2"	1.91"	2.08"	2-1/2"	11/16"	5/8"	3.51 lbs.
