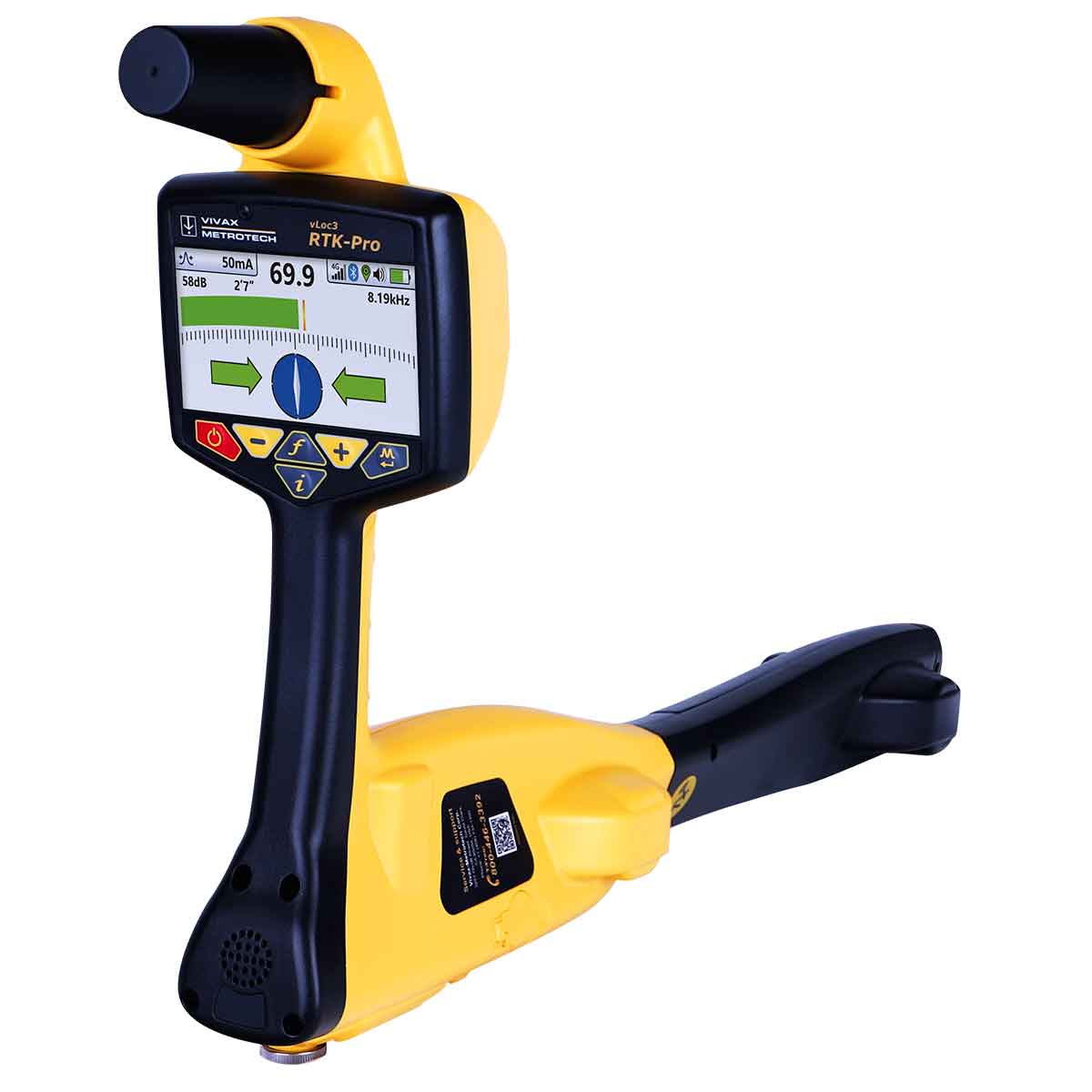

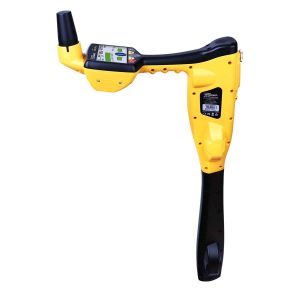

vLoc3 RTK-Pro Survey & Mapping Locator

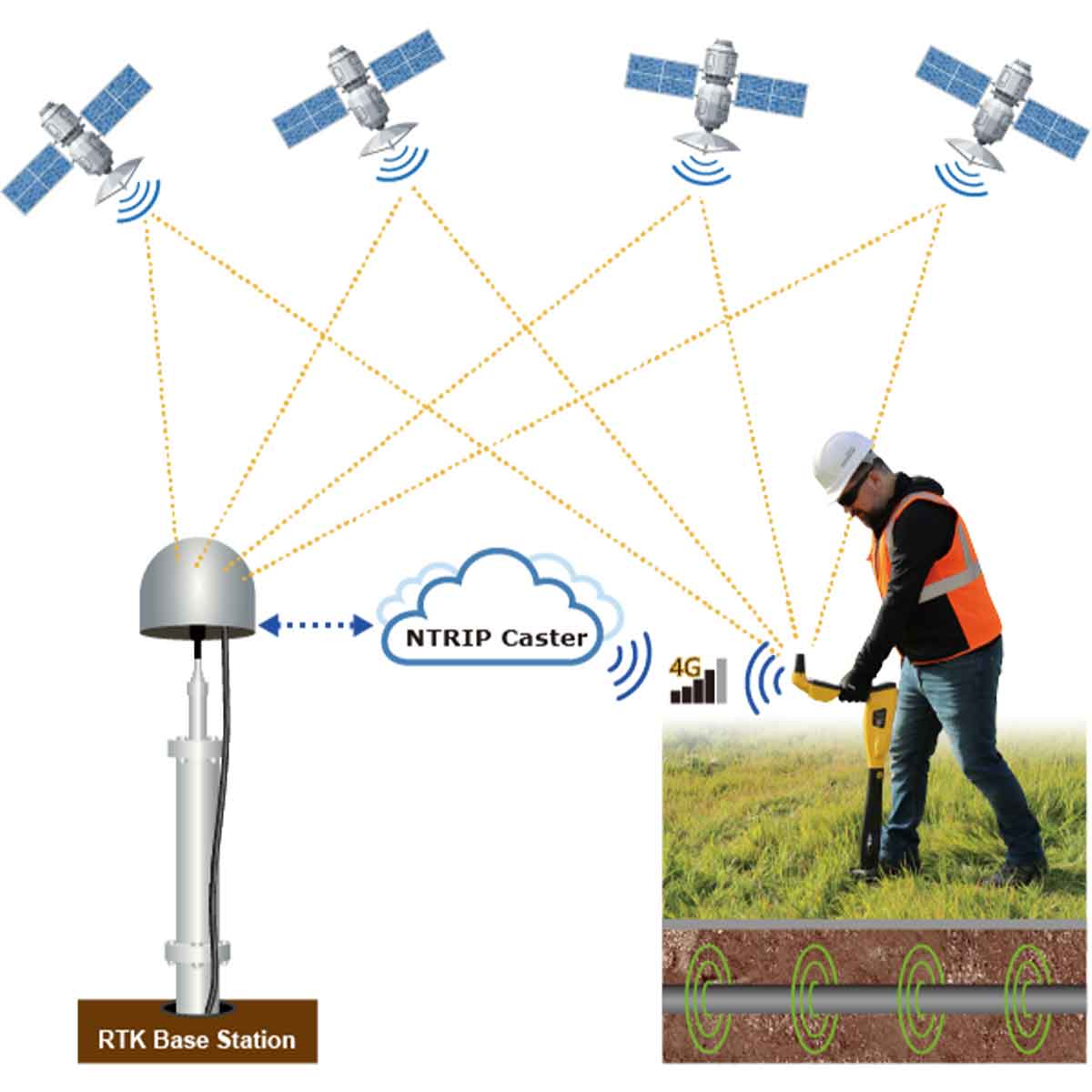

The vLoc3 RTK-Pro receiver is the first to add RTK GNSS accuracy to a utility locator. Using the RTK-Pro internal cellular module with 4G LTE capabilities, the operator has the ability to connect to NTRIP RTK (Real-Time Kinematic ) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data along with the geographical location of the utility with survey-grade accuracy.

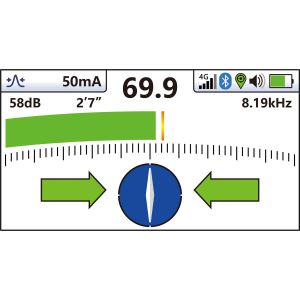

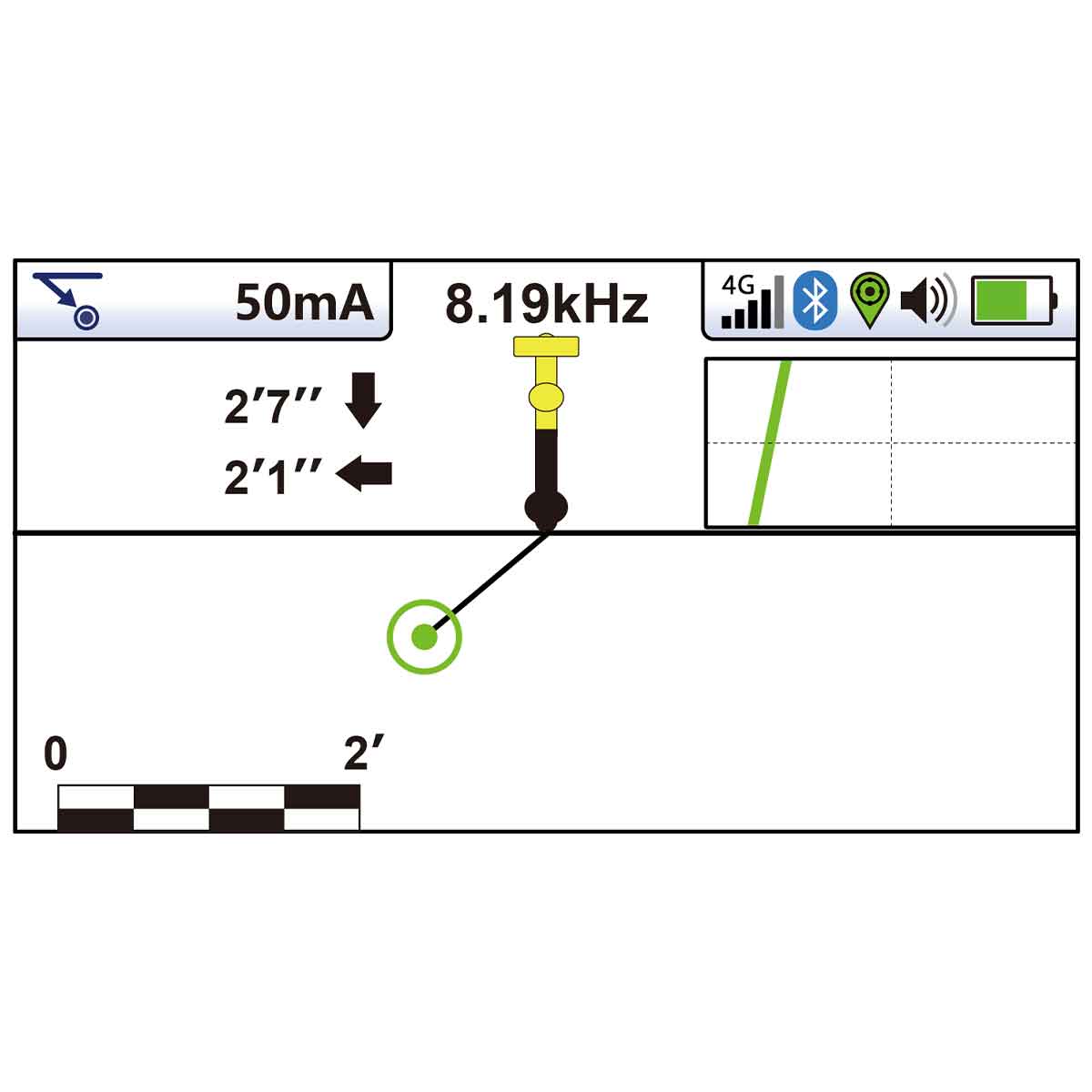

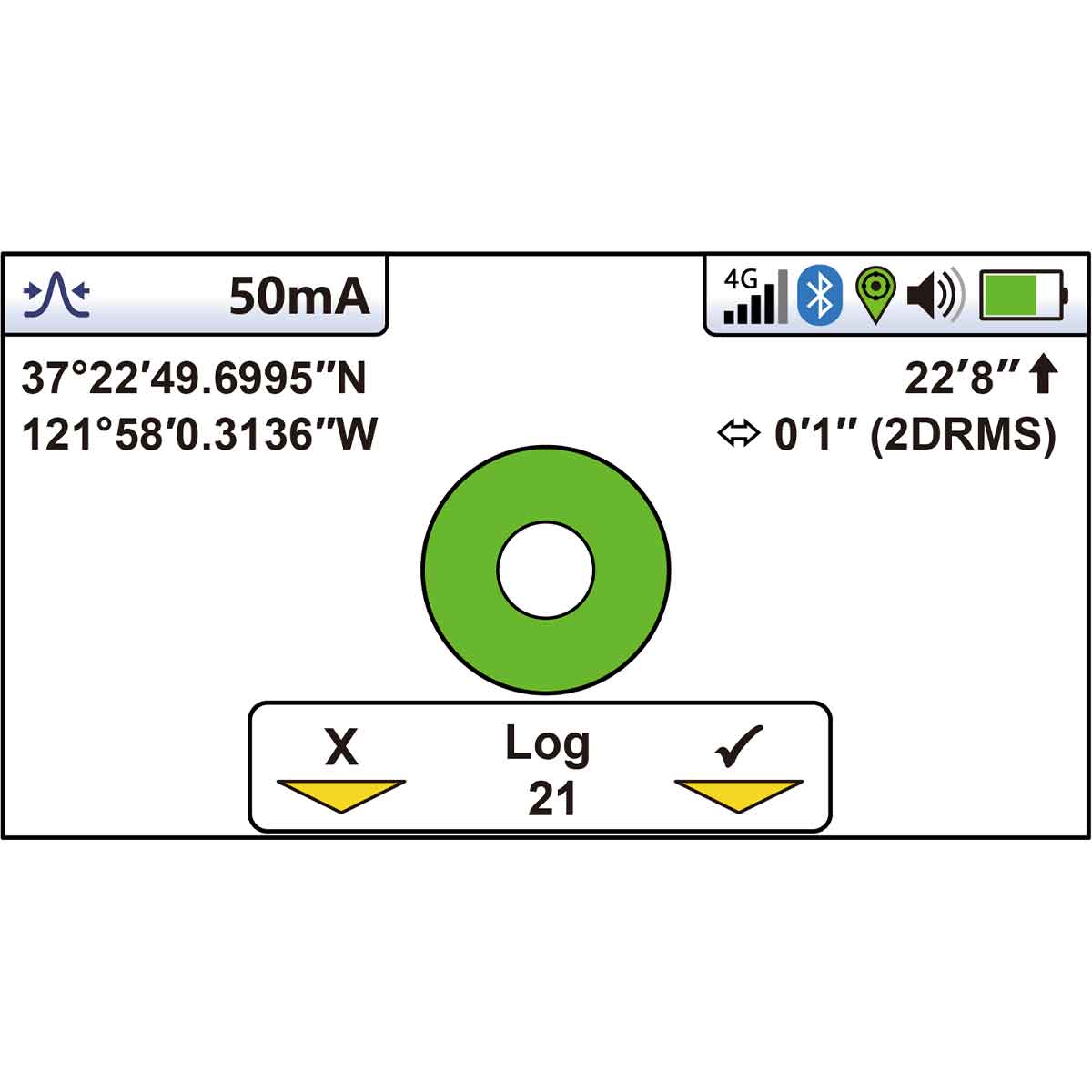

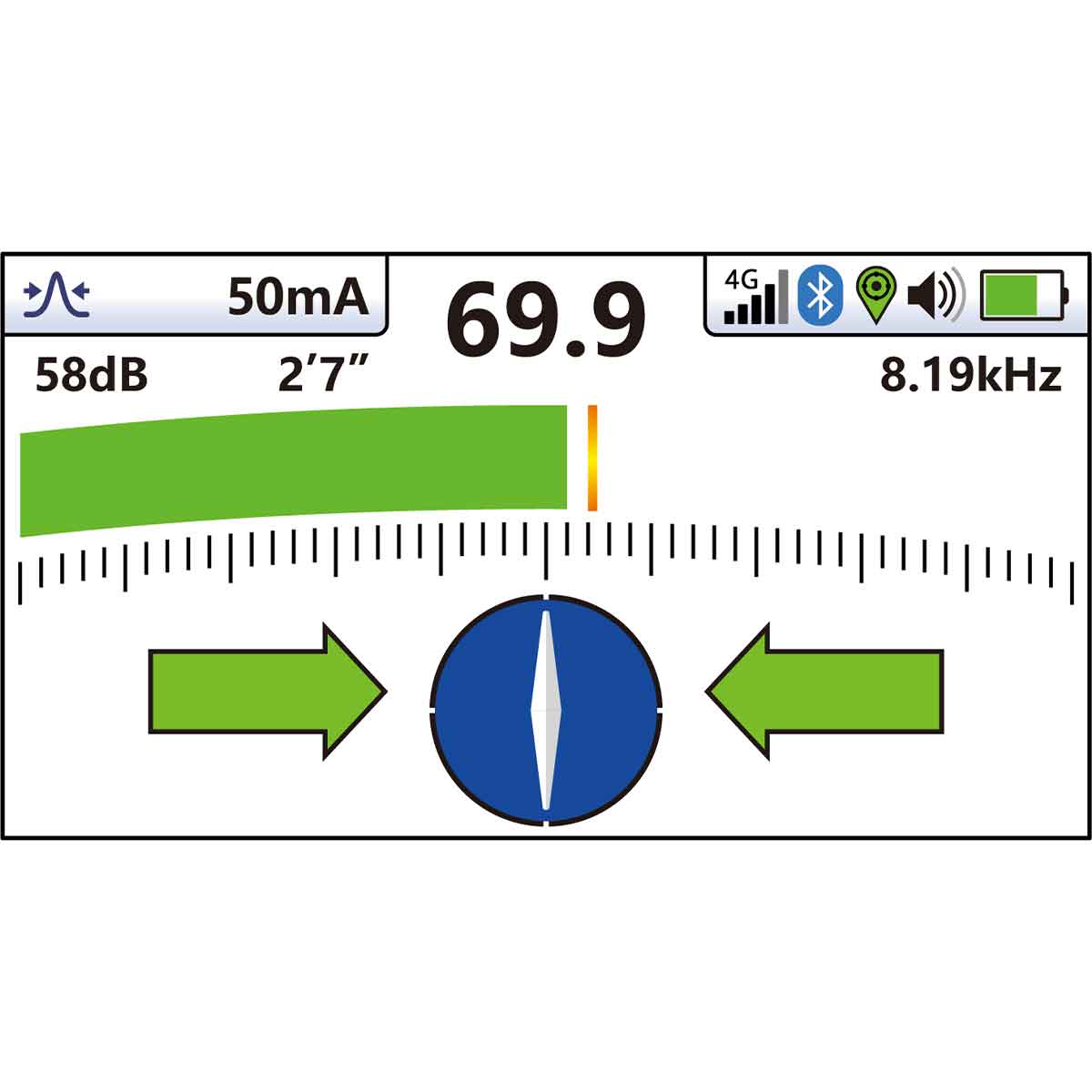

The RTK-Pro was designed for use at all operator levels, utilizing user-friendly and intuitive locate screens. Operators simply confirm the utility data with the press of a button and align the electronic spirit level to store the data. All field data is sent to the cloud and retained in the receivers' onboard storage for review and exporting to external mapping programs.

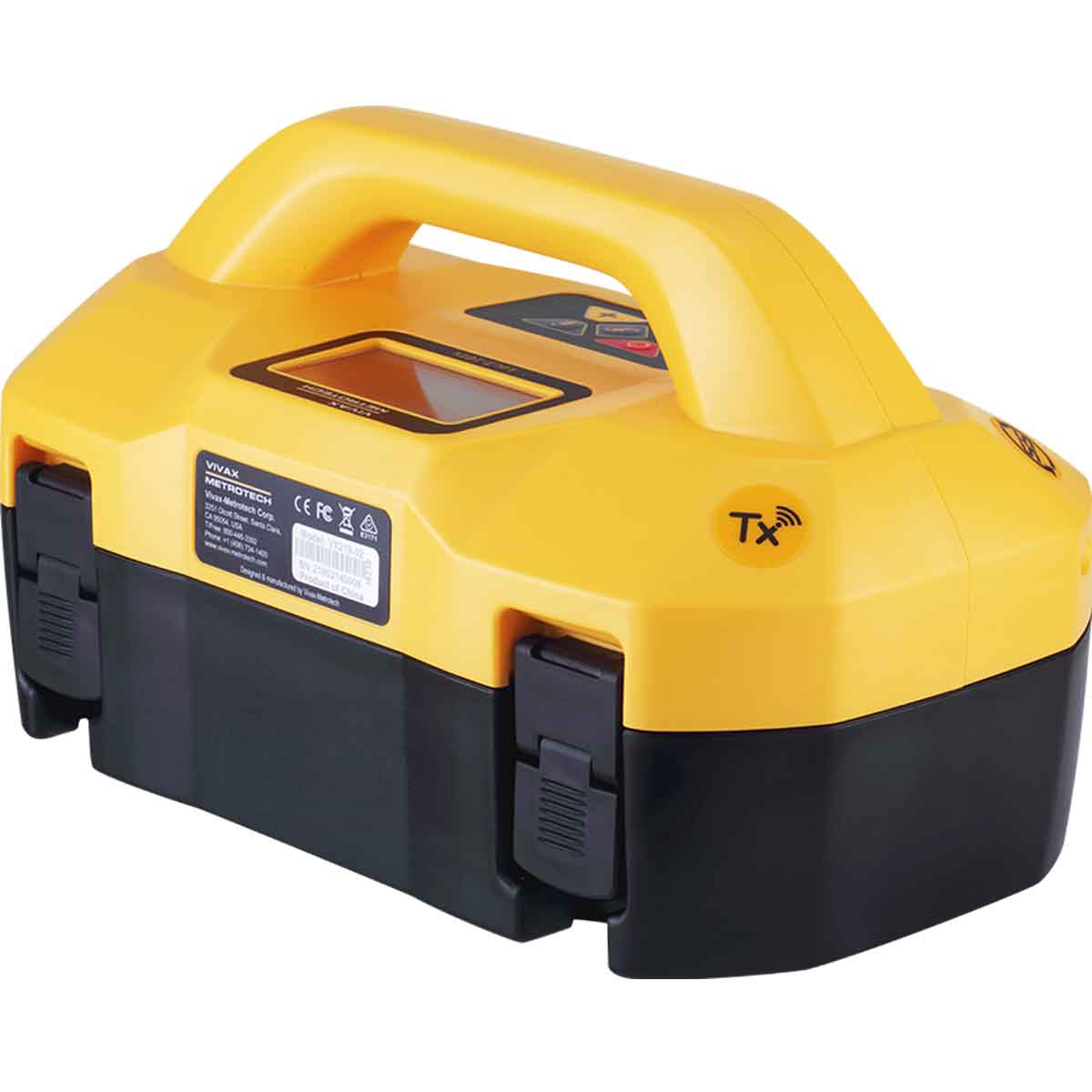

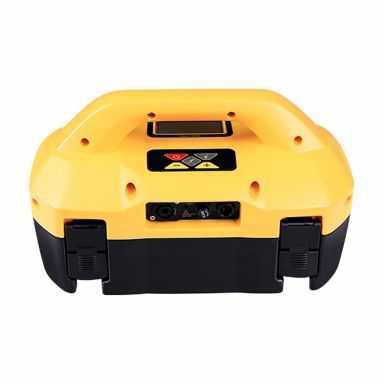

The highly user-configurable vLoc3 series contains eight passive locate modes, fault find mode, SD (showing the direction of outgoing current), and a range of configurable frequenciesn from 98Hz to 200 kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Optional features include Tx-Link that enables the user to change the frequencies of the transmitter, power output and operate most of the features of the transmitter remotely.

If you are in Southern California, reach out for a quote or local demonstration and we'll be in touch!
