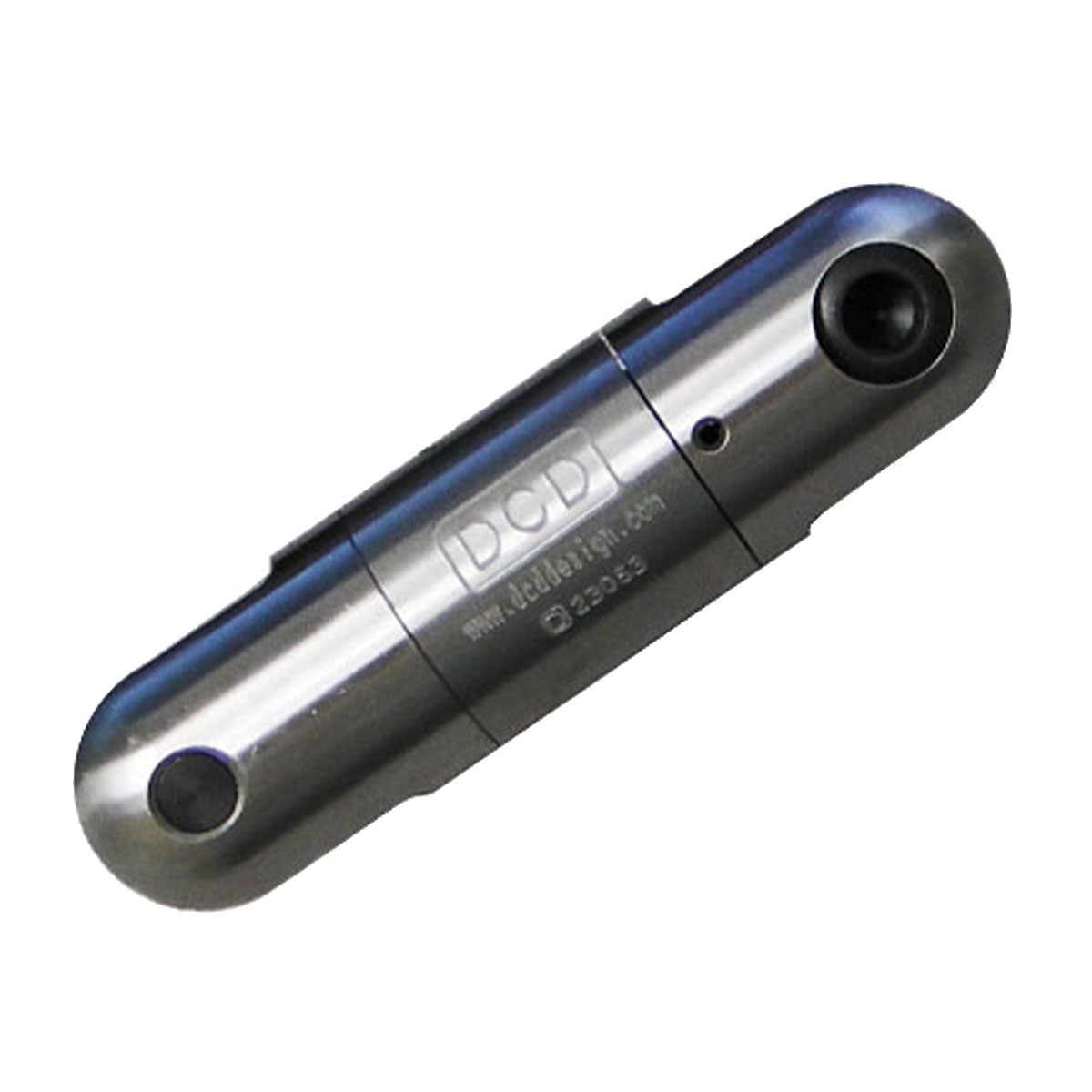

Tensile load is managed by a thrust bearing, bending load is handled by a radial bearing, and they combine for industry leading high safe working loads in a compact design. Select a swivel with a maximum rated capacity that meets or exceeds maximum pulling force, use 3:1 Safe Working Load for underground pulling and 5:1 Safe Working Load for overhead hauling applications.
Locking Line Swivels

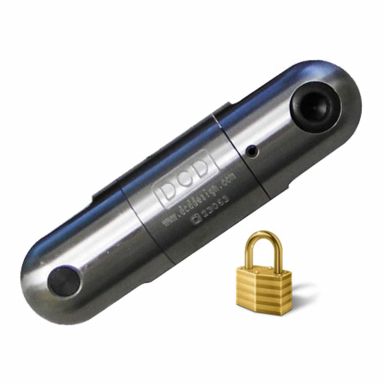

The 00505A series of locking line swivels utilize a bronze thrust bearing for tensile load, and bending load is managed by a radial bearing. The swivel will lock when tension is applied, preventing wire rope from twisting or unravelling during a cable pull. Since the torque vs. load curve is linear for these locking line swivels, meaning the more tensile load applied requires more torque to rotate the swivel, it is recommended that a cable pulling lubricant is used to reduce pull load tension.
| Part # | Locking Part # | 3:1 Safe Working Load | 5:1 Safe Working Load | A | B | C | D | Weight | Replacement Clevis Pin |
| 00505-005 | N/A | 750 lb | 450 lb | 0.625" | 0.28125" | 0.1875" | 2.5" | 0.12 lb | 00005-SLT |
| 00506-008* | N/A | 1,124 lb | 674 lb | 0.78125" | 0.28125" | 0.1875" | 3.1875" | 0.19 lb | 00005-SLT |
| 00505-010 | 00505-010A | 2,250 lb | 1,350 lb | 0.875" | 0.375" | 0.3125" | 3.375" | 0.32 lb | 00010-SLT, 00010-HEX |
| 00505-015 | 00505-015A | 3,500 lb | 2,100 lb | 1" | 0.40625" | 0.375" | 3.875" | 0.51 lb | 00015-SLT, 00015-HEX |
| 00505-020 | 00505-020A | 5,000 lb | 3,000 lb | 1.25" | 0.53125" | 0.40625" | 4.75" | 1.0 lb | 00020-SLT, 00020-HEX |
| 00505-025 | 00505-025A | 7,000 lb | 4,200 lb | 1.375" | 0.5625" | 0.5" | 5.125" | 1.4 lb | 00025-SLT, 00025-HEX |
| 00505-027 | 00505-027A | 9,000 lb | 5,400 lb | 1.5" | 0.59375" | 0.5" | 5.625" | 1.8 lb | 00027-HEX |
| 00505-030 | 00505-030A | 10,000 lb | 6,000 lb | 1.625" | 0.6875" | 0.625" | 6" | 2.1 lb | 00030-SLT, 00030-HEX |
| 00505-035 | 00505-035A | 15,000 lb | 9,000 lb | 2" | 0.78125" | 0.6875" | 7" | 3.9 lb | 00035-SLT, 00035-HEX |
| 00505-040 | 00505-040A | 25,000 lb | 15,000 lb | 2.375" | 1.03125" | 0.875" | 10.3125" | 8.2 lb | 00040-HEX |
| 00505-041** | N/A | 30,000 lb | 18,000 lb | 2.375" | 1.03125" | 0.875" | 10.3125" | 8.3 lb | 00040-HEX |
| 00505-045** | N/A | 50,000 lb | 30,000 lb | 3" | 1.1875" | 1.125" | 13.75" | 18 lb | 00045-HEX |
| 00505-050** | N/A | 62,500 lb | 37,500 lb | 3.75" | 1.5" | 1.25" | 15.5625" | 34 lb | 00050-HEX |
* This has a metric 3:1 Safe Working Load of 5 kN. Contact Customer Service for other metric equivalents.
** These swivels are made from alloy steel with a black oxide finish; all others are stainless steel.
Note: Marine grade versions are available; made to order.
